Fluimac range currently includes air operated double diaphragm pumps, pulsation dampeners, peristaltic pumps, air motors, drum pumps, mixers, horizontal centrifugal pumps with mechanical seal, magnetic driven centrifugal pumps and vertical centrifugal pumps.

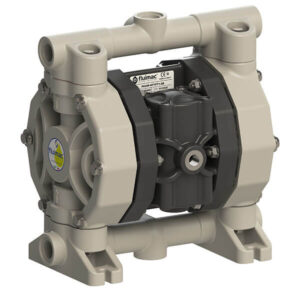

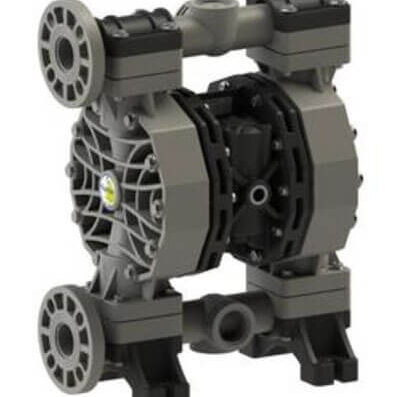

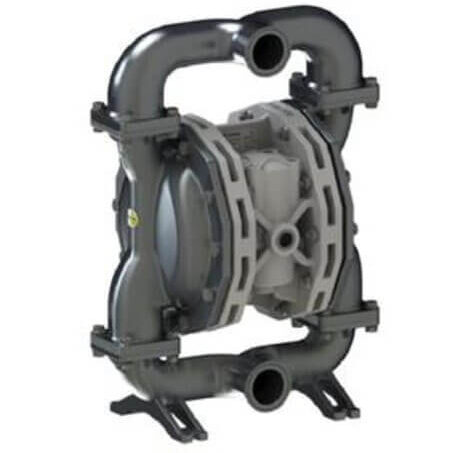

FLUIMAC air operated double diaphragm pumps have long been recognized as the most flexible pumps of the industry for handling difficult liquids at relatively low pressures and flows. The range of applications is virtually limitless.
FLUIMAC AODD pumps come in a lot of sizes, from 1/4″ to 3″, and a lot of choices of materials of construction: PP+VTR, PP+CF, PVDF+CF, POM+VTR, POM+CF, ALUMINUM and SS AISI 316.
Almost every type of liquid from highly corrosive acids, alkaline fluids, paints, adhesives, fluids with high viscosity up to 50.000 CPS, food and drink products can be pumped.

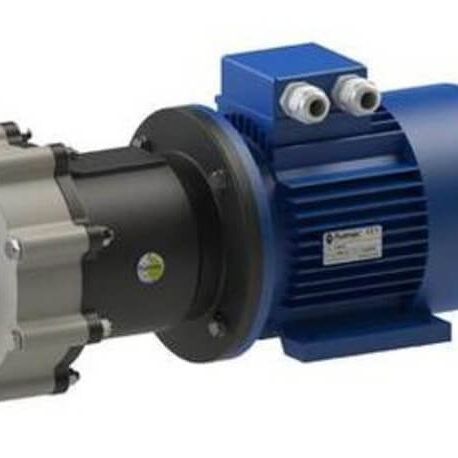

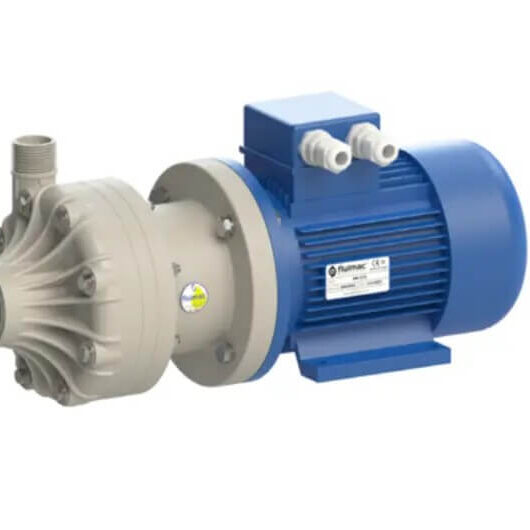

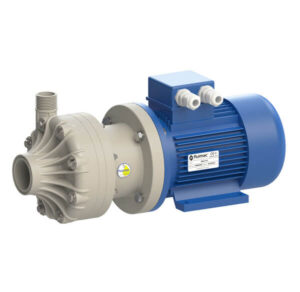

DRAGON plastic horizontal centrifugal pumps are high performance pumps operated by a direct-drive electric motor for fast fluid transfer and drainage with flow-rates ranging from 6 to 40 m3/h.
The special semi-opened impeller design allows continuous pumping even with dirty fluids with apparent viscosity up to 500cps. and small suspended solids.
DRAGON centrifugal pumps feature a solid pump casing and a lantern for connecting the electric motor and inspection of the mechanical seal. The semi-opened impeller is fitted to the pump shaft that is integral with the drive shaft of the electric motor. The shaft mechanical seal is housed at the rear of the impeller.

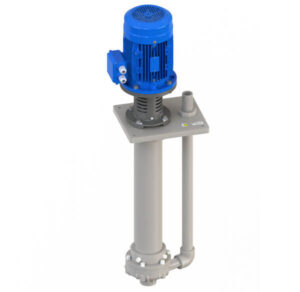

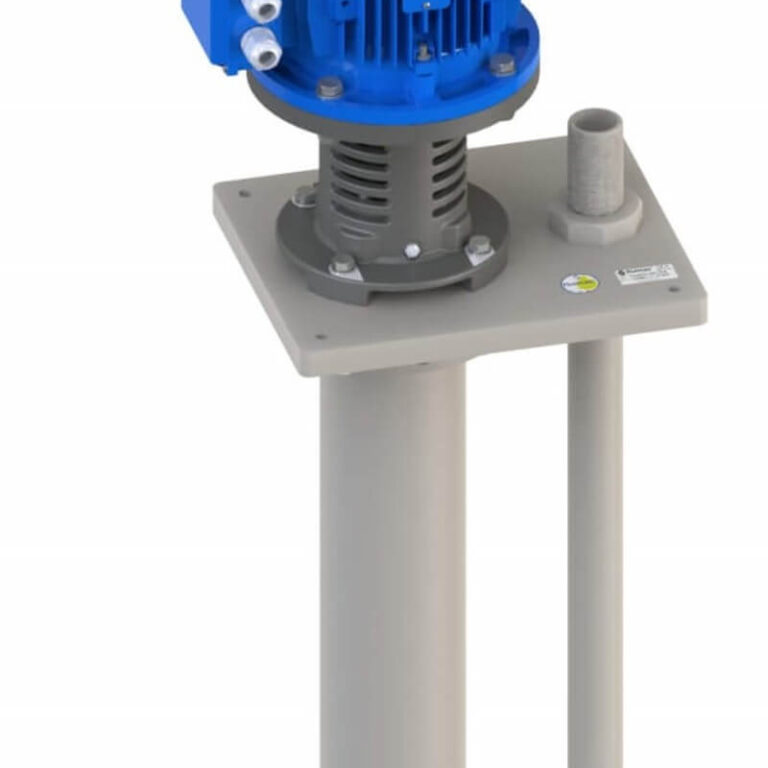

TYPHOON vertical centrifugal pumps are high performance pumps for fixed installations with the pump immersed directly in the tank.
These pumps are used to quickly empty the fluid, with flow rates ranging from 6 to 40 m3/h. The special semi-opened impeller design, allows continuous pumping even with dirty fluids with apparent viscosity up to 500cps. and small suspended solids.
TYPHOON are electric motor driven pumps that, through a flexible coupling, transmitting the rotation to the shaft and the impeller, due to centrifugal effect, creates a suction on the central duct and a delivery on the peripheral tube.

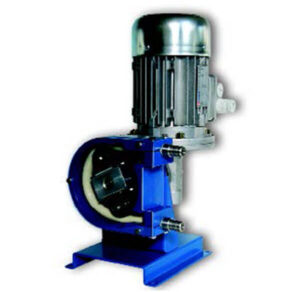

Fluimac peristaltic pump is a machine which applies the principle of peristalsis where constriction along the tube due to its elasticity generates pressure fluctuation. Tube that should resist crushing as long as possible due to elastic and not plastic deformation is a fundamental component of the pump. It is elasticity that allows tube to regain its original size and ensure the fluid pressure and the suction capacity. HELIOS Peristaltic Pump is the choice of major industries in various fields.
They are suitable for abrasive products, acids, sensitive, viscous and dense. Pumps can run dry, are self-priming and reversible. They work without valves or seals which often causes breakage or malfunction of other types of pumps.
These pumps can be successfully applied both in severe conditions such as pumping of abrasive slurries, slurries or filamentous, highly viscous fluids, in cases requiring considerable suction capacity, or requiring maximum delicacy in transfer of fluid in order to keep its original characteristics (no emulsions, no foam, no contamination).

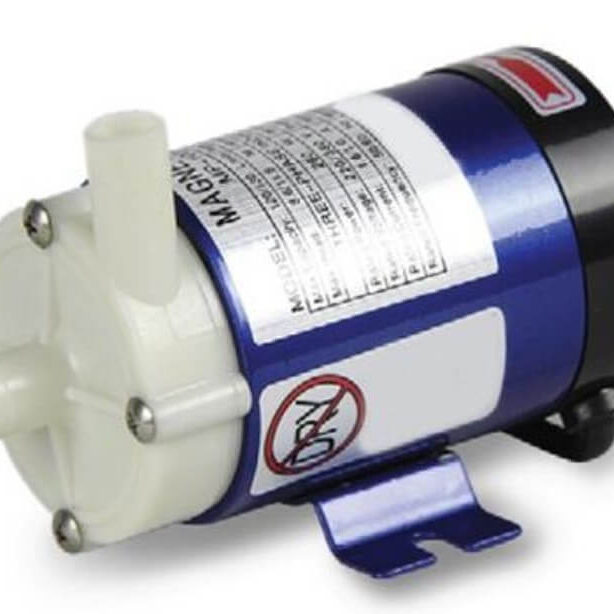

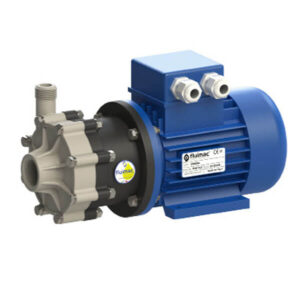

Mag drive centrifugal pumps series COMPASS are made of Polypropylene and PVDF, and are suitable for high corrosive liquids. Thanks to the innovative mag drive system, COMPASS series reduce the risks of leakage and emissions and the maintenance costs.
The transmission of the motion occurs through magnetic joints without any mechanical seal and this design guarantees the maximum safety and efficiency. The pumped liquid has to be clean and without solids in suspension.
“AM” series
Swift mixers witt low power rating Kw 0.37, easy and economic construction, for mixing on little tanks max 1 m3 for low viscosity fluid. Impeller “MARINE PROPELLER” inclination of 35°. Available in Aisi 304 or PVC coating.

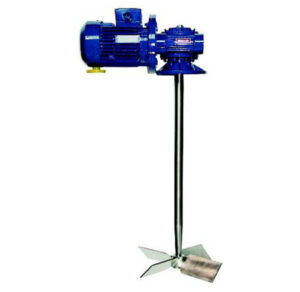

“MR” series
Slow mixers, used in water treatment, on little-medium tank max 10 m3 of capacity. Impeller with 4 inclined blades. The shaft of the mixer is directly key coupled with the hollow shaft of worm gearbox. Available in Aisi 304-316 or PVC coating.

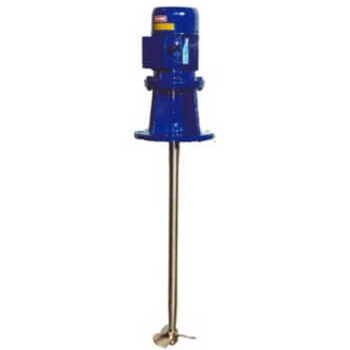

Serie “SL”
Agitatori veloci ad accoppiamento diretto con motori a 4-6-8 poli dotati di supporto di guida completi di cuscinetto ed anelli di tenuta. Normalmente usati per la miscelazione di reattivi chimici o per la dissoluzione e preparazione di soluzioni a bassa viscosità, in serbatoi di media o piccola dimensione. Materiali in aisi 304-316 o rivestiti PVC.
Serie “RLV”
Agitatori lenti dotati di riduttore coassiale direttamente accoppiati tramite giunto rigido. Fornibili con singola o doppia sopportazione in fusione alluminio completi di cuscinetti ed anelli di tenuta. Realizzabili con alberi e giranti in Aisi 304-316 o con rivestimenti in Gomma Ebanite o PVC. etc. Detti agitatori vengono particolarmente usati per la miscelazione di soluzioni a media viscosità o per la dissoluzione di solidi ad elevata concentrazione. Molto usati in processi chimici, e nel settore del trattamento delle acque (Flocculazione-Omogeneizzazione fanghi Neutralizzazione) etc. Fornibili con potenze fino a kw 15 con alberi di lunghezza max a 5 mt dotati di giranti o turbine a spinta assiale o radiale.

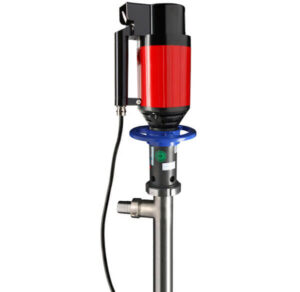

The drum pumps and container pumps NEPTUNE are light, handly and powerful devices for an economic and safe filling and transferring of thin fluid up to middle viscous, neutral or aggressive media out of drums and containers.
They can be used as transportable or stationary drum and container pumps and are designed for a intermittent, non-continuous use. A well engineered and technologically clear design our drum pumps guarantees you an efficient and operationally reliable usage. Different pump tubes of our drum pumps for different media are interchangeable and can be used with same electric or pneumatic driven motor.
